Services Offered
NON-DESTRUCTIVE TESTING (NDT)

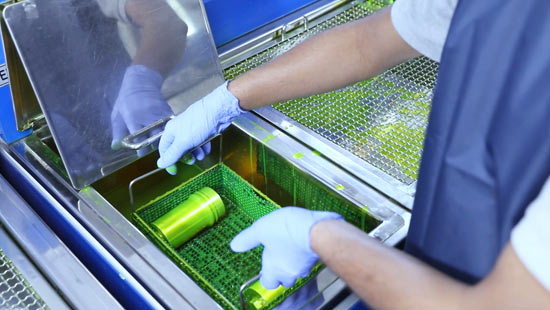

FLUORESCENT PENETRANT INSPECTION
Fluorescent Penetrant Inspection (FPI or PT) is a type of dye penetrant inspection in which a fluorescent dye is applied to the surface of a non-porous material in order to detect surface defects that may compromise the integrity or quality of the part in question.
- System Based on ASTM E1417, ASTM E165 and MIL-STD-1907 and others as require
- Test up to Size: 20” x 20” x 20” (508mm x 508mm x 508mm)
- NDT Inspectors are qualified to NAS 410 (Level II) with guidance of consulting company NAS Level III. (NAS 410-National Aerospace Standard for Nondestructive Testing Personnel Qualification and Certification)

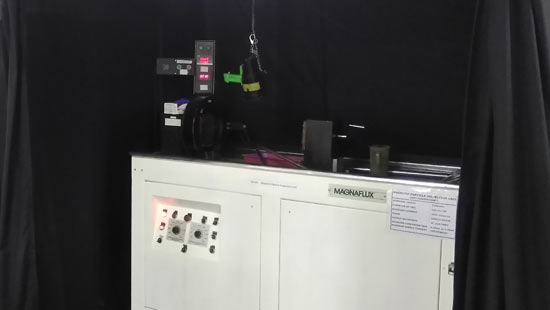

MAGNETIC PARTICLE INSPECTION
The Magnetic Particle Inspection (MPI or MT) method of Non-Destructive testing is a method for locating surface and sub-surface discontinuities in ferromagnetic material.
- System Based on ASTM E1444, ASTM E709, Other Industry Standards and MIL-STD-1907 and others as require
- Any ferromagnetic components, material
- Test up to 10” (254mm) Diameter x 10 Ft length
- NDT Inspectors are qualified to NAS 410 (Level II) with guidance of consulting company NAS Level III (NAS 410- National Aerospace Standard for Nondestructive Testing Personnel Qualification and Certification)
SURFACE TREATMENT AND CHEMICAL PROCESSING

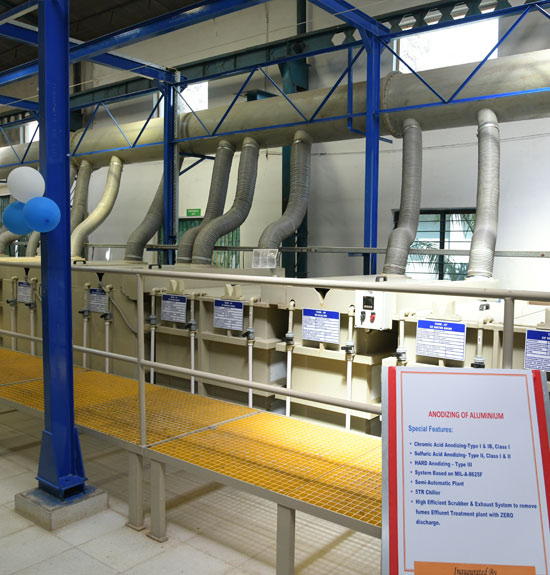

ANODIZING OF ALUMINUM
Anodizing is an electrochemical process that converts the metal surface into a corrosion-resistant, decorative, durable, anodic oxide finish. Aluminum is ideally suited to anodizing, although other nonferrous metals, such as magnesium and titanium, also can be anodized.
- Operating Standards: MIL-A-8625F, Other Industry Standards
- Semi-Automatic Plant
- 5TR Chiller unit for maintaining stable temperature for Sulphuric Acid Anodizing (18-21C) & HARD Anodizing (-3 degree C)
- High Efficient Scrubber & Exhaust System to remove fumes
- Effluent Treatment plant with ZERO discharge
PROCESS |
PROCESSING STANDARD |
Chromic Acid Anodizing |
MIL-A-8625, Type-I & IB, Class - 1 |
Sulfuric Acid Anodizing |
MIL-A-8625, Type-II, Class - 1 & 2 |
HARD Anodizing |
MIL-A-8625, Type-III, Class - I |
S/N |
Details for Anodizing |
Make |
Capacity |
Qty. |
1. |
Anodizing Plant - Semiautomatic |
Komal Chemiequip. |
Upto 15” Diameter x 35” length Parts |
01 |
2. |
Salt Spray Chamber |
Mett-Bio, Ahmedabad |
ASTM B117 |
01 |
3. |
Ultrasonic Coating Thickness Meter |
ElektroPhysik , Germany |
0-2000 micron |
01 |
4. |
Ph Meter |
Hanna |
0-14 |
01 |
5. |
TDS Meter |
Hanna |
0-2000 ppm |
01 |
6. |
Weighing Scale |
- |
200 gram with accuracy : 10 Milligram |
01 |
7. |
Laboratory |
- |
- |
- |

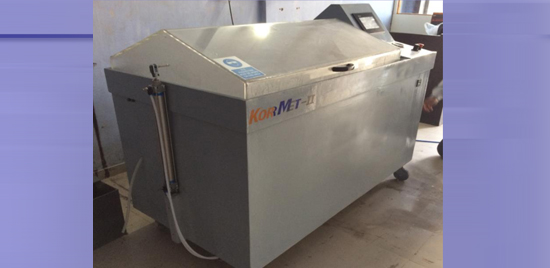

SALT SPRAY TESTING
- A Salt Spray Corrosion Test is performed to determine the impact of environmental conditions on materials, components and surface coatings.
- Chamber construction, testing procedure and testing parameters are standardized under national and international standards – ASTM B117.
OTHER PROCESSES

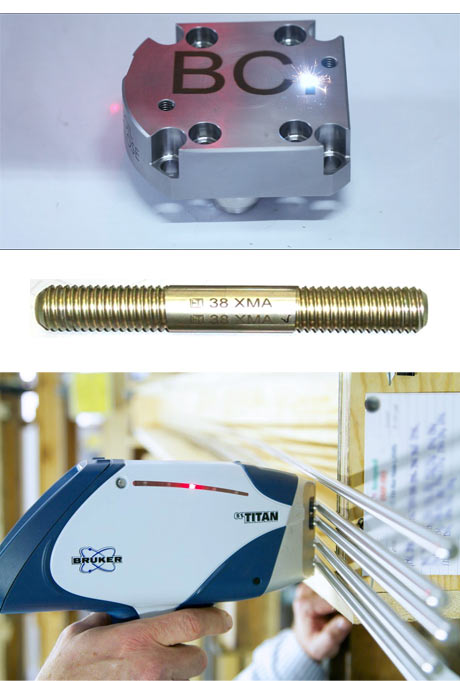

LASER MARKING
Laser Marking Machine provides a fast, flexible and efficient way to permanently mark a wide variety of materials such as Metals, Plastics, Ceramics Wood and Silicon.
- » Part Marking as per MIL-STD-130 and other
- » Marking up to 140mm x 140mm
- » Mark various fonts in various sizes in depth.
XRF METAL (PMI) ANALYZER
- » An XRF Alloy Analyzer is used to find the grade of the alloy, chemical properties, etc. of Stainless Steel, Aluminum & precious metals of any metal including precious metals.
- » Completely NON-DESTRUCTIVE TEST.
- » FullyPortable
- » OnsiteService
HARDNESS TESTING
- » Providing Hardness
- » Testing for raw material
- » We can check HRA, HRB, HRC, etc.
3D PRINTING
- » 3D Printing job as per customer requirement.
Material: ABS, PLA, PC, PP, CPE, Nylon, etc. - » ADD TABLE SHOWN BELOW FROM PROFILE AT THE END.
- » 3D Printing job as per customer requirement.
FUTURE PLANS
Ontario Electromechanica Pvt. Ltd. (A Group Company of BC Instruments India Pvt. Ltd.) is proposing to extend its services to special processes like:
